LC-Series

Cost-Effective Network Video Recorders

Deprecated

Una All-in-One Video Recorder: Easiest to Quote, Install, Service

  • No external switch required with 8 or 16 PoE camera ports
  • Store up to 12TB of video
  • Simply plug in cameras and start recording with exacqVision EasyConnect
  • Automatically configure IP cameras for motion-based recording
  • Monitor and control camera power usage in exacqVision
  • Includes 8 or 16 exacqVision Start VMS software licenses
  • Saves maintenance trips by remotely power cycle individual PoE cameras
  • High output power supply provides up to 120 watts per 8 cameras
  • Unlimited scalability to grow with your business needs
  • Add configurable trigger inputs and outputs with an optional external USB I/O module
exacqVision Una All-in-One Video Server includes exacqVision Start VMS Software licenses

Hybrid Network Video Recorder: Connect up to 32 Cameras

  • Record IP cameras, encoders and analog cameras
  • Connect up to 16 analog cameras and 16 IP cameras per appliance
  • Compatible with thousands of IP camera models from leading manufacturers like Illustra, Axis, Arecont Vision and more
  • Continuously record up to 100 Mbps of video
  • Powerful, pre-loaded with exacqVision Start VMS software

IP Network Video Recorder

  • Connect up to 16 IP cameras per appliance
  • Compatible with thousands of IP camera models
  • Continuously record up to 100 Mbps of video
  • Powerful, pre-loaded with exacqVision Start VMS software
  • Add configurable trigger inputs and outputs with an optional external USB I/O module
exacqVision LC-Series IP camera network video recorder

Powerful, Easy-to-Use VMS Included

Powerful, pre-loaded with exacqVision Start VMS software that does the following:

  • Auto detects IP cameras for quick, simple setup
  • Easily add additional IP cameras—up to 16 total
  • Continuous motion, time or alarm-based recording configurable per camera

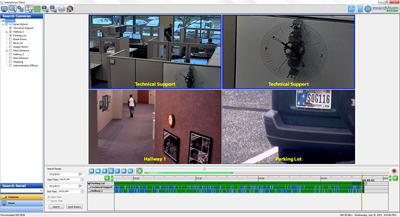

    • Search recorded video with a timeline search or graphical thumbnail search, playback multiple cameras simultaneously
    • Easily control PTZ cameras
    • Export audio, video and pictures to be easily e-mailed or saved
    • View an instant replay of video from any camera with exacqReplay
  • Easily upgradeable to exacqVision Professional or Enterprise VMS
  • Simply add IP licenses as needed

View Video From Anywhere

  • View video and manage servers on multiple Windows/Linux/MAC PCs with free client software
  • View live and recorded video on any browser
  • View live and recorded video on iOS, Android or Windows Phone 8 mobile devices with free application
exacqVision free client software
exacqVision LC-Series video servers include 3 year warranty

3-Year Warranty and Software Subscription Agreement (SSA)

  • Constantly increase VMS features with regular software updates
  • 3 years of unlimited software updates included
  • 3 years of system warranty
  • Add optional annual on-site video recorder repair service to diagnose and resolve issues faster within the continental United States
Una, up to 8 POE+ cameras
Una desktop recorder with 8 POE+ (120W max) IP camera ports, 150Mbps continuous recording rate. 8 exacqVision START IP licenses, server and client, web/mobile software pre-installed with 3 years software upgrades and hardware warranty. Ubuntu Linux 18.04, DisplayPort, DVI-D, HDMI, VGA, Dual GB client network NIC, 8 USB 2.0. Keyboard and mouse included.
Product NameStorage Size
PE08-02T-LC2 TB
PE08-04T-LC4 TB
PE08-06T-LC6 TB
PE08-08T-LC8 TB
PE08-12T-LC12 TB
Options for Una, up to 8 POE+ cameras
(Option Name/Description)
Una, up to 16 POE+ cameras
Una desktop recorder with 16 POE+ (240W max) IP camera ports, 150Mbps continuous recording rate. 16 exacqVision START IP licenses, server and client, web/mobile software pre-installed with 3 years software upgrades and hardware warranty. Ubuntu Linux 18.04, DisplayPort, DVI-D, HDMI, VGA, Dual GB client network NIC, 8 USB 2.0. Keyboard and mouse included.
Product NameStorage Size
PE16-02T-LC2 TB
PE16-04T-LC4 TB
PE16-06T-LC6 TB
PE16-08T-LC8 TB
PE16-12T-LC12 TB
Options for Una, up to 16 POE+ cameras
(Option Name/Description)
LC, Up to 16 IP Cameras
Desktop recorder with 4 IP cameras licenses (16 max), exacqVision Start client, server, web/mobile software pre-installed with 3 years software upgrades and hardware warranty. Ubuntu Linux 18.04, DisplayPort, HDMI, DVI-D, VGA monitor outputs, Dual Gb NIC. Keyboard and mouse included.
Product NameStorage Size
IP04-02T-LC2 TB
IP04-04T-LC4 TB
IP04-06T-LC6 TB
IP04-08T-LC8 TB
IP04-12T-LC12 TB
Options for LC, Up to 16 IP Cameras
(Option Name/Description)
LC, 8 Analog, Up to 16 IP Cameras
Desktop recorder with 4 IP cameras licenses (16 max) and 8 analog at 30 FPS, exacqVision Start client, server, web/mobile software pre-installed with 3 years software upgrades and hardware warranty. Ubuntu Linux 18.04, DisplayPort, HDMI, DVI-D, VGA monitor outputs, Dual Gb NIC, 1 multiplexed analog output. Keyboard and mouse included.
Product NameStorage Size
0804-02T-LC2 TB
0804-04T-LC4 TB
0804-06T-LC6 TB
0804-08T-LC8 TB
0804-12T-LC12 TB
Options for LC, 8 Analog, Up to 16 IP Cameras
(Option Name/Description)
LC, 16 Analog, Up to 16 IP Cameras
Desktop recorder with 4 IP cameras licenses (16 max) and 16 analog at 30 FPS, exacqVision Start client, server, web/mobile software pre-installed with 3 years software upgrades and hardware warranty. Ubuntu Linux 18.04, DisplayPort, HDMI, DVI-D, VGA monitor outputs, Dual Gb NIC, 1 multiplexed analog output. Keyboard and mouse included.
Product NameStorage Size
1604-02T-LC2 TB
1604-04T-LC4 TB
1604-06T-LC6 TB
1604-08T-LC8 TB
1604-12T-LC12 TB
Options for LC, 16 Analog, Up to 16 IP Cameras
(Option Name/Description)
LC-Series Hybrid & IP Appliances
LC-Series IP & Hybrid Appliances
pdf
Aug 2020
exacqVision Spec Sheets
LC-Series Hybrid & IP Appliances
LC-Series IP & Hybrid Appliances (Spanish)
pdf
Apr 2019
Spanish
exacqVision Spec Sheets
LC-Series Hybrid & IP Appliances
LC-Series Una Server
LC-Series Una Camera Power Management
pdf
Aug 2020
exacqVision Spec Sheets
LC-Series Una Server
LC-Series Hybrid & IP Appliances
LC-Series Hybrid & IP Appliances
pdf
Mar 2020
exacqVision Quick Start Guides
LC-Series Hybrid & IP Appliances
LC-Series Hybrid & IP Appliances (Dutch)
pdf
Mar 2016
Dutch
exacqVision Quick Start Guides
LC-Series Hybrid & IP Appliances
LC-Series Hybrid & IP Appliances (German)
pdf
Nov 2013
German
exacqVision Quick Start Guides
LC-Series Hybrid & IP Appliances
LC-Series Hybrid & IP Appliances (Italian)
pdf
Feb 2014
Italian
exacqVision Quick Start Guides
LC-Series Hybrid & IP Appliances
LC-Series Hybrid & IP Appliances (Spanish)
pdf
Feb 2014
Spanish
exacqVision Quick Start Guides
LC-Series Hybrid & IP Appliances
LC-Series Una Server
LC-Series Una Camera Power Management
pdf
Mar 2020
exacqVision Quick Start Guides
LC-Series Una Server
LC-Series IP & Hybrid
exacqVision LC-Series IPS
docx
May 2020
exacqVision A&E Specifications
LC-Series IP, Hybrid, UNA
exacqVision LC-Series Hybrid
docx
May 2020
exacqVision A&E Specifications
LC-Series IP, Hybrid, UNA
LC-Series UNA
exacqVision LC-Series UNA
docx
May 2020
exacqVision A&E Specifications
LC-Series UNA
LC-Series IP, Hybrid, PoE Appliance
exacqVision LC-Series Server RFA/BIM
rfa
Oct 2017
exacqVision Certifications and Drawings
LC-Series IP, Hybrid, PoE Appliance
CA-10403-A2-UL LC-Series
pdf
Mar 2018
exacqVision Certifications and Drawings
LC-Series IP, Hybrid, PoE Appliance
CE Declaration of Conformity LC-Series
pdf
Jan 2019
exacqVision Certifications and Drawings
LC-Series IP, Hybrid, PoE Appliance
KSA Declaration LC-Series
pdf
Mar 2018
exacqVision Certifications and Drawings
LC-Series IP, Hybrid, PoE Appliance
Any storage expansion may require additional hardware
Spare Drive Capacity / HD Builds
IP & Hybrid UNA
2 TB 1 1
4 TB 1 1
6 TB 1 1
8 TB 0 0
12 TB 0 0
5000-02001 - 2TB Spare Drive
5000-04001 - 4TB Spare Drive
5000-06001 - 6TB Spare Drive
