exacqVision Pro VMS

exacqVision Pro VMS





exacqVision Pro VMSProduct Description:

exacqVision® Pro VMS (Video Management System) software comes pre-installed on all exacqVision A-Series Hybrid Servers and IP Servers, the enterprise-level Z-Series Hybrid and IP servers, and is available on the EL-S/EL-SR hybrid and EL-Series IP embedded appliance servers.



exacqVision Pro VMS can also be purchased separately for installation on commercial off-the-shelf (COTS) servers running Windows or Linux.



exacqVision Pro VMS creates an advanced security solution, providing recording of the latest, state-of-the-art IP video surveillance cameras.



The powerful, easy-to-operate client user interface installs on any standard computer running Windows, Linux or Mac OS X and can connect to multiple exacqVision Hybrid (analog and IP cameras) and IP Camera Servers creating a virtually unlimited amount of cameras and protection.



Video from all exacqVision systems can also be accessed with web browsers and mobile devices with access to the internet.











Features:



Easy Connection to IP Cameras:

  • Each server expandable up to 64 IP cameras (24 IP cameras on EL-Series appliances, and up to 96 IP cameras on Z-Series servers).
  • Simple and cost-effective to add additional IP camera licenses.
  • Supports IP cameras and encoders from multiple manufacturers.
  • Supports latest IP camera technology including megapixel cameras, H.264 and analytics.
  • Digital PTZ functionality on all cameras in live and recorded mode.



Intuitive User Interface:

  • Intuitive user interface requires little to no training.
  • Common client connects to multiple exacqVision servers to create scalable networks.
  • Easy-to-use, powerful video, audio and POS export features.
  • Multi-monitor client display & Video Wall. Drag and drop cameras and maps between monitors.
  • Graphical search display for all cameras and recorded audio.
  • Easy to use multi-camera search, playback and export.
  • Smartsearch function.
  • Powerful mapping feature integrates seamlessly with video streams.  Add any number of maps from any image source, place cameras and alarms on map, watch interactive activity on map.  Watch Mapping demo video
  • NEW - Audit Trail - enables managers, internal investigators and auditors to search, view or export system actions performed by any system user, such as login/logout, viewing/closing cameras, and configuration changes.



Client-Server Architecture:

  • Server software runs on standard Windows and Linux platforms.
  • Unlimited number of clients can connect to every server.
  • Client software operates in Windows, Linux and MAC OSX.
  • Small footprint client: 13MB total including help files.
  • Browser thin client also included for viewing and playback in any web browser.



Enterprise Server Option:

  • Enterprise Users - easily administer user accounts and privileges across the enterprise with a single entry.
  • Active Directory / LDAP support - integrates with existing Active Directory or LDAP servers.
  • Multi-level Mapping - create nested maps-within-maps where events in nested maps can appear on top-level maps. Ideal for enterprise deployments where there may be maps of the campus, individual buildings, floors in the buildings, specific wings on the floors.
  • NEW - Enterprise Cameras - single-screen, real-time view of all cameras in the enterprise system. Sortable by connection, recording status, IP address, firmware revision, etc. Double-click any camera for that camera's setup screen. Right-click any camera for live or instant playback via exacqReplay.
  • Ability to add optional Enterprise Health Manager
  • Watch Enterprise Server Option demo video



Browser Support:

  • Web server and viewing capability included: view, search and playback video from any standard browsers, using the browser-based thin client, no ActiveX support required.
  • View, search and playback from any javascript-enabled mobile browser, which includes most smart phones.
  • Basic live view from any WAP mobile browser, which includes most non-smart phones.
  • Real-time configurability of resolution enables use in bandwidth-restricted environments.
  • Fully control alarms and triggers via browser view
  • Watch exacqVision Browser-based thin client video



exacq Mobile Apps: iPhone & iPad, Android

exacq Mobile
  • NEW - exacq Mobile 2.3 App for iPhone®, iPod Touch® & iPad™ - information
  • NEW - exacq Mobile 2.3 App for Android™ - now available
  • Video demos:

           iPhone App    iPad App   Android phone App    Android tablet App

International Support:
  • Language Localization - Select between English, French, German, Norwegian, Danish, Finnish, Swedish, Dutch, Spanish, Catalan/Valencian, Polish, Slovak, Arabic, Chinese, Japanese, Korean, Russian, Hungarian.



Powerful Integration:



Frequent Feature Updates:

  • exacqVision VMS software is frequently updated to support new cameras, access control systems, and new features. A complete release history is here. First year of updates come standard; additional years available through the Software Update Subscription agreement.







exacqVision Family - Feature Matrix





  Start Professional Enterprise
System
  Server OS Compatibility Windows/Linux Windows/Linux Windows/Linux
  Free Client Software Windows/Linux/Mac Windows/Linux/Mac Windows/Linux/Mac
  Supported Browsers IE, Chrome, Safari, Firefox, Opera IE, Chrome, Safari, Firefox, Opera IE, Chrome, Safari, Firefox, Opera
  Max cameras per server
  (hardware dependent)
16 Analog
16 IP
64 Analog
96 IP
64 Analog
96 IP
  Max server connections per client 1 512 (thick client)
16 (web client)
512 (thick client)
16 (web client)
  Bandwidth Throttling Yes Yes Yes
  Pre-Post Alarm Recording Yes Yes Yes
  Panoramic Lens Support Yes Yes Yes
  Video Expiration Max retention, global Min/Max retention by camera Min/Max retention by camera
  iSCSI Support - Yes Yes
  Time-lapse Recording - Yes Yes
  Client Joystick Configuration - Yes Yes
  Soft Triggers - Yes Yes
  Audit Trail - Yes Yes
  Custom User Groups - Yes Yes
  3rd-Party Integrations - Command line Yes

Live View
  PTZ Control & Presets Yes Yes Yes
  Digital PTZ Control & Presets Yes Yes Yes
  Multi-Monitor & Video Wall Yes Yes Yes
  Event Linking Discrete inputs only Yes Yes
  Event-driven video switching - Yes Yes
  Groups - Yes Yes
  exacqRecall one-button export - Yes Yes
  Event Notifications - Yes Yes
  Maps - Single-level Multi-level

Playback & Search Yes Yes Yes
  Multi-camera Playback Yes Yes Yes
  Simultaneous Video Export 1 channel 16 channels 16 channels
  Graphic Search Display Yes Yes Yes
  Event Search Yes Yes Yes
  POS & ATM Serial Text Search Yes Yes Yes
  DVD Export Yes Yes Yes
  exacqReplay Instant Replay Yes Yes Yes

Enterprise Administration
  Smart Search - Yes Yes
  Enterprise Cameras - - Yes
  Enterprise Server Monitoring - - Yes
  Enterprise User Setup - - Yes
  LDAP / Active Directory - - Yes
  Health Monitoring - e-mail Enterprise Health Manager (optional)
e-mail

Software Updates
  Software Updates Included
  (on exacqVision Servers)
90 Days 3 years 3 years
  Software Updates Included
  (on 3rd-party Servers)
90 Days 1 year 1 year

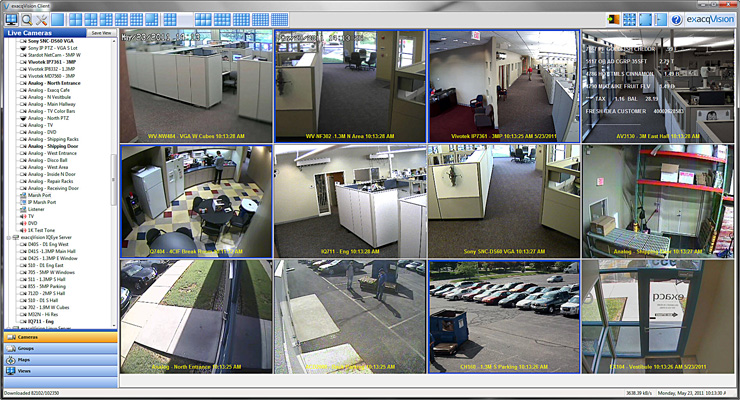

Easy-to-use, intuitive user interface

exacqVision Pro utilizes an easy-to-understand, highly-intuitive user interface. Easy to setup, easy to navigate, easy to use.



exacqVision Pro Live View 3x3

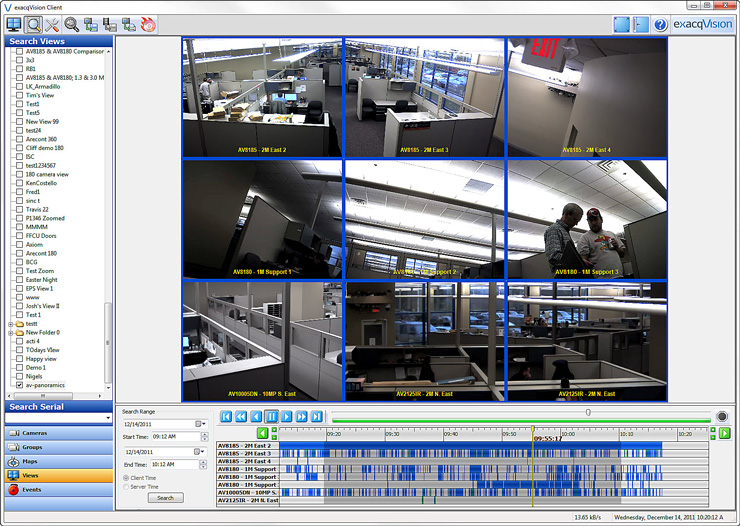

Powerful Search - Easily find what you want

exacqVision's Graphical Search enables quick finding of desired video. Playback multiple cameras simultaneously. Easily export multiple camera clips. Tie in POS and ATM data. Smart Search feature enables quick retrieval of changed information.



exacqVision Pro multi-camera search and playback

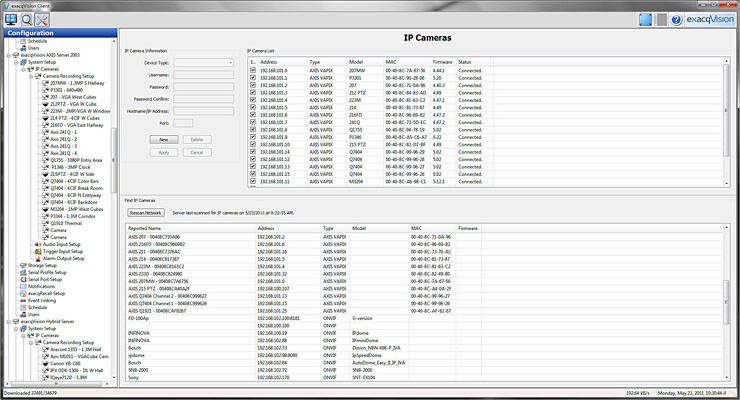

Powerful, intuitive configuration

exacqVision Pro is an out-of-the box solution. Auto-detection of IP cameras makes configuration simple and quick. Adjusting camera resolutions and framerate, users and permissions,trigger events, audio and more is simple. Setup maps, motion masks, recording schedules, storage rules, event notifications, administer users and permissions, and more.

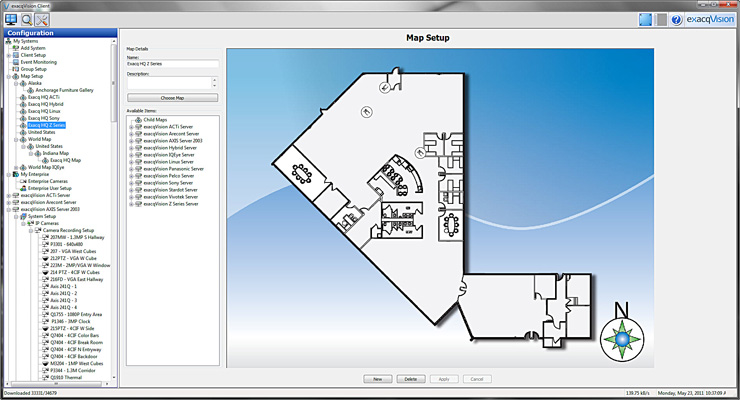

exacqVision Pro Map Setup

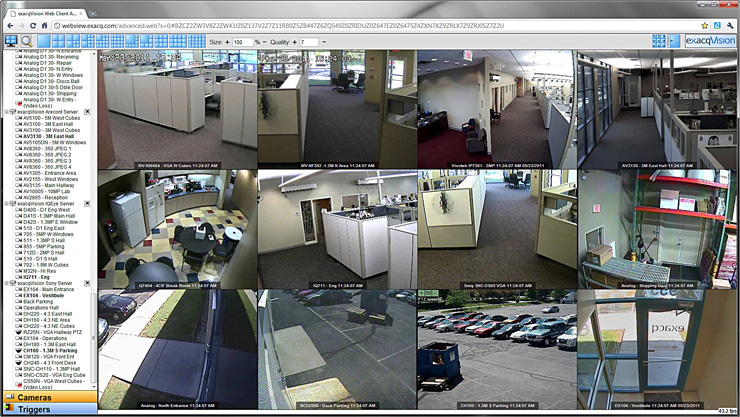

Browser Viewing

Full viewing and searching is also available in any web browser. Save specific views as a URL for recalling or for e-mailing and sharing.



exacqVision Pro browser view

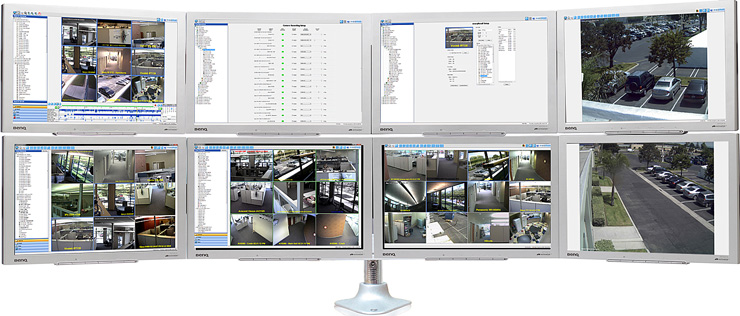

Multi-Monitor & Video Wall

exacqVision Pro can utilize as many video outputs as the client workstations allow. View various live cameras in some monitors, use others for spot monitors, and search in even others. Through event linking, video can be pushed to monitors on occurance of events, or user selection.



exacqVision multi-monitor & video wall



Mac, Windows & Linux

exacqVision Pro is truly cross-platform, with native clients for Windows, Mac and Linux. Mix and match any combination of Windows, Mac, Linux in an enterprise system.



exacqVision Pro Mac client

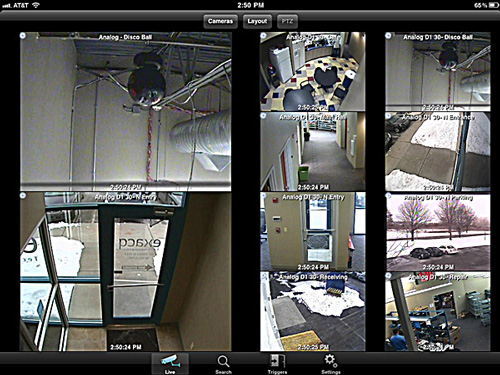

exacq Mobile

Full viewing and searching is also available on mobile devices using the included exacq Mobile apps for the Apple iPhone/iPod Touch and iPad, as well as Android phone and tablet devices.

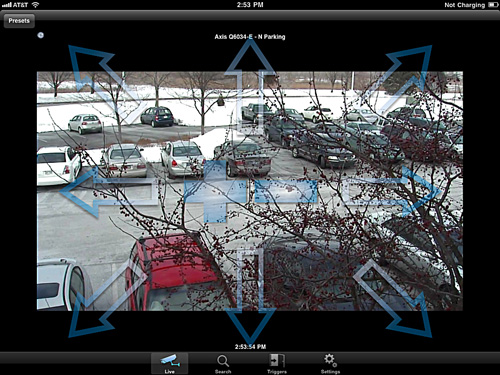

exacq Mobile on iPad



exacq Mobile on iPad





exacqVision Pro Overview Video:







exacqVision Web Service Overview Video:











exacqVision Pro Software Subscription Agreement (SSA)





exacqVision License info image on System Setup pageThe exacqVision VMS software is updated frequently with new features, improved performance, and new IP camera offerings. Typically new updates come out about every two months.



exacqVision Pro and Enterprise VMS software comes standard with three years of software updates when deployed on exacqVision servers, one year of software updates if deployed on third-party servers. Additional years of updates are available at time of order, or can be purchased as the update subscription nears the end.



For a listing of the exacqVision software updates for the last few months, see our Blog post compilation here:

exacqVision Software Update Release Notes



To purchase subscription updates, you need the MAC address of your exacqVision system, available in the lower right hand corner of the System Setup Page, and looks like the image to the right. With that number we can look up your system and update the subscription license accordingly.



To update, contact Exacq as follows:



By Phone

Orders: +1-317-813-3722



By E-Mail

E-mail to: orders@exacq.com



By Fax

Fax to: +1-317-845-5720







exacqVision Pro Server & Client Workstation Requirements



VMS Server Hardware Requirements:

Minimum (typically < 10-MBps camera traffic, 1-2 simultaneous remote clients)

Processor:

Intel® Atom® D525 1.8GHz or higher

RAM:

1 GB

Hard Drive:

JBOD, Minimum sustained non-sequential write capacity 15MBps

Operating Systems:

Microsoft® Windows XP, server 2003 (minimum)
  Linux Ubuntu 8.04 or higher

NIC:

1x 100Mbps (minimum), 1Gbps (preferred)

Average (typically 10-20Mbps camera traffic, 4 simultaneous remote clients)

Processor:

Intel® Core i3-2100 3.10GHz or higher

RAM:

2 GB

Hard Drive:

JBOD (Minimum), RAID5 (Preferred), Minimum sustained non-sequential write capacity 30MBps

Operating Systems:

Microsoft® Windows 7 Pro or Server 2008 (32 or 64 bit)
  Linux Ubuntu 10.0.4

NIC:

1x 1Gbps (minimum), 2x 1Gbps (preferred)

High Performance (typically 20-60MBps camera traffic, 8+ simultaneous remote clients)

Processor:

Intel® Core i7-2600 3.4GHz or Xeon E3-1220

RAM:

4 GB

Hard Drive:

RAID5 (Minimum), RAID6 (Preferred), Minimum sustained non-sequential write capacity 70MBps

Operating Systems:

Microsoft® Windows 7 Pro or Server 2008 (32 or 64 bit)
Linux Ubuntu 10.04

NIC:

2x 1Gbps (minimum), 4x 1Gbps (preferred)

NOTE: Hosting a web server on an exacqVision server will increase CPU & RAM requirements based on live view camera data rate and quantity of simultaneous connections.

Client Workstation Hardware Requirements:

Minimum (typically used for viewing 1-4 analog camera streams)

Processor:

Intel® Atom® D525 1.8GHz or higher

RAM:

1 GB

Hard Drive:

40 GB

Video:

10MB onboard video memory

Operating Systems:

Microsoft® Windows XP or higher
  Apple Macintosh OSX 10.4 or higher (Intel-based Mac)
  Linux Ubuntu 8.04 or higher

Average (typically 1 monitor with multiple multi-Mpixel cameras)

Processor:

Intel® Core i3-2100 3.10GHz or higher

RAM:

2 GB

Hard Drive:

40 GB

Video:

64MB video card (DirectDraw 7 compatible)

Operating Systems:

Microsoft® Windows 7 Pro or higher
  Apple Macintosh OSX 10.6 or higher
  Linux Ubuntu 8.04 or higher

High Performance (typically 4 monitors with large camera counts)

Processor:

Intel® Core i7-2600K 3.4GHz or higher

RAM:

4 GB

Hard Drive:

40 GB

Video:

512MB video card (DirectX 9 compatible)

Operating Systems:

Microsoft® Windows 7 Pro or higher
  Apple Macintosh OSX 10.6 or higher
  Linux Ubuntu 10.04 or higher


Web Browser Access: (For viewing online from standard web browsers)
Compatibility: Internet Explorer, Firefox, Safari, Opera, Chrome

Mobile Device Access: (via mobile network or wifi)
Compatibility: iPhone and iPod Touch, Android, BlackBerry, Windows Mobile, WAP browsers





exacqVision Pro VMS Software
   Part Number Description
   EVIP-01 exacqVision Pro software - single IP camera license

exacqVision Enterprise Server option for exacqVision Pro
   Part Number Description
   EVES-01 exacqVision Enterprise Server option

exacqVision Software Update Subscription
   Part Number Description
   SSA-EVIP-01 One Year exacqVision Pro Software Upgrades
   SSA-EVES-01 One Year Enterprise Server option Software Upgrades
