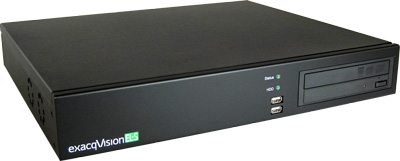

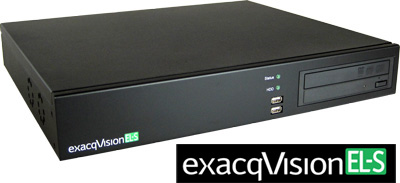

exacqVision EL-S
Compact, Reliable, Energy-Efficient Hybrid NVR Appliance
Product Description:
exacqVision EL-S is a low cost, highly energy efficient, hybrid network video surveillance appliance that provides a new level of reliability, performance and energy efficiency.
High reliability is achieved through the use of Linux OS on a solid-state drive, ensuring the unit is always accessible. Top performance with H.264 compression and 240ips full D1 resolution on all analog cameras. Extremely low power consumption for energy efficiency and cool operation.
8 or 16 analog camera inputs and up to 24 IP camera inputs.
Features:
- High Reliability – Fully functional Linux OS on a solid-state drive ensures unit keeps functioning and alerts you of hard drive failures.
- 8 & 16-input Versions – Available as 8-inputs with loop-thru, or 16-inputs no loop-thru.
- High Frame Rate @ D1/4CIF - Full 240ips D1 resolution across all analog cameras (200ips PAL). CIF and 2CIF resolutions also available.
- Efficient File Size - Uses leading-edge H.264 video compression on all analog channels.
- True Hybrid – Any combination of analog and IP cameras from all of the leading IP camera vendors. Standard resolution or megapixel, even the latest H.264 compression IP cameras. Use existing analog cameras today, add up to 24 IP cameras.
- Compact Chassis – 1.5U Rackmount professional chassis can be used in tight spaces, under the counter, equipment cabinets, or in professional IT racks. Stack units for high-density camera counts.
- Built-in DVD/CD-RW drive – easily export video clips using the built-in CD/DVD-RW drive, or to USB flash drives.
-
High
Energy Efficiency – Reduced energy footprint and
lower lifetime operating cost through energy
efficient design. Thermally-optimized chassis
ensures cool operation and high reliability. - Low Cost – one of the least expensive, true hybrid systems to purchase and operate on the market today.
-
High
Performance – Optimized application for the
latest Intel Atom microprocessor, providing high
performance with very low power consumption and heat
generation. - Intuitive exacqVision Software - all of the features of exacqVision are available on this unit. Use as an inexpensive stand-alone system, or as part of a large enterprise system.
- Cross-Platform Client – View, search and administer with the exacqVision client software on Windows, Linux and Macintosh computers!
-
Mobile Access
- Access video with web browsers and mobile devices with internet access.
- Apple® iPhone® & iPad™ app available
- Android app available Summer 2010
| Recording Resolution - Analog: |
CIF: 352x240 NTSC / 352x288 PAL 2CIF: 720x240 NTSC / 720x288 PAL 4CIF (D1): 720x480 NTSC / 720x576 PAL |
|
| Recording Resolution - IP: | Up to 10 Megapixel; IP camera dependent | |
| Frame Rate - Analog: | EL-S 8: | 240/200 IPS D1/2CIF/CIF (30/25 IPS/camera) |
| EL-S 16: |
240/200 IPS D1 (15/12.5 IPS/camera) 400/360 IPS 2CIF (25/22 IPS/camera) 480/400 IPS CIF (30/25 IPS/camera) |
|
| Frame Rate - IP: | IP camera dependent | |
| Compression - Analog: | H.264 or MJPEG hardware compression | |
| Compression - IP: | H.264, MPEG-4, MJPEG; IP camera dependent | |
| Alarm Inputs: | 4 TTL inputs | |
| Alarm Outputs: | 2 TTL outputs and 1 relay output | |
| Video Inputs - Analog: | EL-S 8: | 8 BNC inputs plus 8 BNC loop-thru |
| EL-S 16: | 16 BNC inputs | |
| Video Inputs - IP: | Up to 24 IP camera inputs (optional) | |
| Video Outputs - Analog: | 1 BNC | |
| Audio Inputs: | 4 + IP camera audio | |
| Serial Connections: | RS-485 PTZ port, RS-232 port | |
| NIC: | 1Gbit 1000Base T RJ-45 | |
| USB2 Ports: | 6 (2 front, 4 rear) | |
| Hard Drive Storage: | Enterprise class, 250, 500, 750, 1000 & 2000 GB | |
| VGA Output: | 1 VGA (DB15) | |
| Keyboard & Mouse: | Included | |
| DVD/CD RW: | Included (front panel access) | |
| Watchdog Timer: | Included | |
| Operating System: | Linux embedded on solid state drive | |
| Compatible Client Operating Systems: | Windows 7, Windows Vista, Windows XP, Windows Server
2003/2008 32-bit 0r 64-bit Windows OS Linux (Ubuntu) Mac OS X |
|
| Web Browser Support: | exacqVision Web Server included, allows multi-camera view and playback via browser | |
| Mobile Support: | View and playback from any mobile device browser Apple iPhone & iPad app available Google Android app available Summer 2010 |
|
| Regulatory: | CE (Class A), FCC (Class A) | |
| Warranty: | 3 years, parts & labor | |
| Dimensions (LxWxH): |
14.5 x 16.5 x 2.5 (1.5U) inches 36.8 x 41.9 x 6.3 cm |
|
| Weight: |
12.0 lbs 5.5 kg |
|
| Operating Temperature: | 40° -95°F (4.5° – 35°C) | |
| Relative Humidity: | 5 – 95% RH (non-condensing) | |
| Input voltage: | 120/240 VAC auto-sensing | |
| Power consumption: | 35W maximum | |

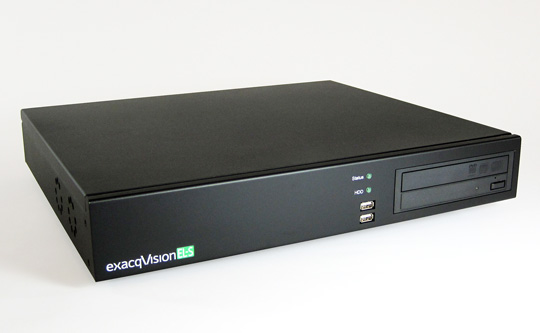

exacqVision EL-S - Front:

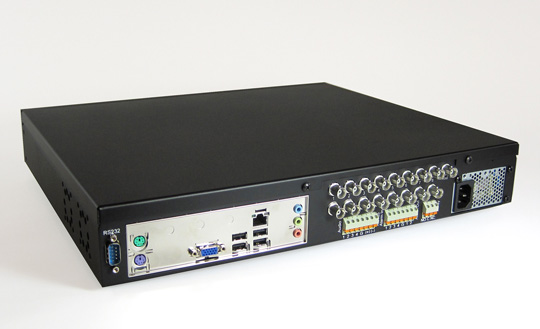

exacqVision EL-S - Rear:

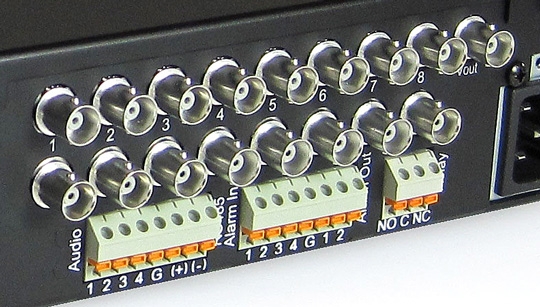

exacqVision EL-S - Rear connectors close-up:
|
| Models: | |
| exacqVision EL-S Model Numbers: | Hard Disk Drive Storage Capacity: |
|
exacqVision EL-S 8 |
|
| 0800-24-0250-ELS |
250GB |
| 0800-24-0500-ELS | 500GB |
| 0800-24-0750-ELS | 750GB |
| 0800-24-1000-ELS | 1000GB |
| 0800-24-2000-ELS | 2000GB |
|
exacqVision EL-S 16 |
|
| 1600-24-0250-ELS |
250GB |
| 1600-24-0500-ELS | 500GB |
| 1600-24-0750-ELS | 750GB |
| 1600-24-1000-ELS | 1000GB |
| 1600-24-2000-ELS | 2000GB |
|
Options |
|
| EVIP-01 | IP camera license for any exacqVision system |
| EVES-01 | exacqVision Enterprise Server Management Option |
| 5000-64100 | Rack-mount kit for exacqVision EL/EL-S (adapters, handles) |
| 5000-64150 | Wall-mount kit for exacqVision EL/EL-S |
