Advanced Hybrid Video Surveillance NVR |
|
|
|
Powerful Hybrid
Video Surveillance System |
|
| |
True Hybrid NVR -
Seamlessly mix any combination of Analog & IP cameras |
|
| |
Easy to Use
- Contemporary, Intuitive User Interface |
|
| |
Advanced Analog Camera Support
| |
Hardware Compression for full frame rate on all
analog cameras |
|
| |
Up to D1 (4CIF) resolution on all analog inputs |
|
| |
Industry-Standard MPEG-4 Compression |
|
| |
Unriviled Video Quality and Clarity |
|
| |
Up to 32 analog inputs at full frame rate in
single, cool-running 2U chassis |
|
|
|
| |
Extensive
IP Camera Support
| |
Standard, PTZ and Megapixel cameras of any
resolution |
|
| |
Cameras from the most popular vendors,
including Axis, Sony, and IQinvision |
|
| |
All compression formats |
|
| |
Add up to 64 IP cameras per server. Easy
licensing with no activation or camera MAC
addresses required |
|
|
|
| |
Secure & Stable -
Client Server architecture for stability and security |
|
| |
Easy to Expand
- Mix and match exacqVision IP and exacqVision Pro
systems to add additional IP and Analog cameras for a
truly Hybrid, scalable enterprise video surveillance
system, from one camera to hundreds. |
|
| |
|
|
| |
|
|
|
 |
|
|
|
exacqVision Pro
Network DVR is a hybrid digital video recorder product
line designed for advanced CCTV security and
surveillance applications. exacqVision
Pro seamlessly merges
real-time digitizing of analog cameras and IP
cameras. exacqVision Pro systems are available in 4, 16
and 32 camera versions, packaged in both
space-saving
2U-height rackmount chassis and compact
desktop chassis.
|
| |
|
Hardware
Compression
- Advanced MPEG-4 ASP Compression
enables Real-Time Video with
watermarking on every camera |
|
Analog & IP
Cameras
- Seamlessly mix any number and
combination of analog cameras and IP
cameras |
|
Completely
Scalable
- exacqVision Pro can be implemented from
single-camera systems up to enterprise
systems with hundreds of cameras |
|
Common User
Interface for All Configurations -
Powerful, easy-to-use client software is
common to both exacqVision Pro and
exacqVision IP |
|
Powerful –
Simultaneous record, playback, and search |
|
POS/ATM
Integration – Powerful Text Insertion and
indexing allow for POS & ATM video and
transaction recording |
|
Extensive I/O
– 16/32 video inputs, multiplexed video output,
alarm inputs and outputs, audio, serial
ports (RS-232 & 485) for POS/ATM and PTZ,
API for third-party integration |
|
Open
Architecture for Integration –
Open API for third-party integration of
video analytic software, access control
systems, more |
|
Client-Server
Design - Highly Secure for Network
Operation. |
|
High Resolution
Video
- Video resolutions on each input up to
4CIF (D1) for analog camera inputs, and
support for IP cameras of all
resolutions, including megapixel
resolutions for detail recording in
large areas (lobbies, common areas,
perimeters, etc) |
|
|
|
|
 |
|
Easy-to-Use
, Contemporary User Interface
Common User Interface from one camera to
hundreds of cameras. Customize camera
groupings and views. Fully administer
users and servers from any location.
Intuitive look and feel.
|
|
 |
|
Powerful Search
Graphical view of recorded activity allows for
intuitive search and playback of desired video.
Search on motion, alarm, POS, ATM, Access
Control, and more. Search across cameras
and systems, with simultaneous playback of many
cameras.
|
|
 |
|
Easy Setup
Easy and intuitive administration of users,
servers, cameras, alarms, and external
equipment. Client-Server architecture
enables total administrative control from any
remote location. |
|

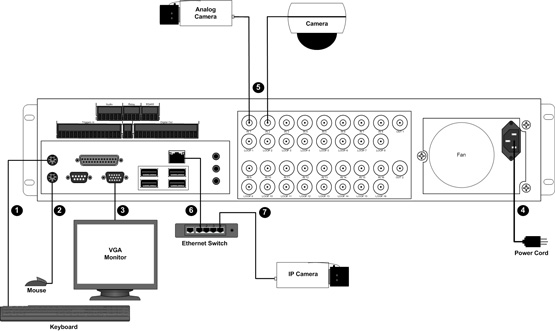

exacqVision Pro is
available in both 2U Rackmount and Compact Desktop
units:
|
|
| |
 |
 |
|
| |
exacqVision Pro - Rackmount
Professional Hybrid NDVR in 2U Rackmount Chassis.
Available in 16-input and 32-input versions.
Includes 8 IP video inputs, more available optionally. |
exacqVision Pro - Desktop
Professional Hybrid NDVR in space-saving
compact-tower chassis. Available in 4-input and
16-input versions. Includes 8 IP video inputs,
more available optionally. |
|
|
|
|
