Complete Security System On A Single-Slot Board

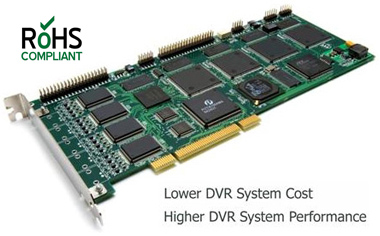

Exacq eDVR
implements all components for a DVR on a single-slot PCI board:
·
hardware compression and decompression
·
16-input at 480 ips* @ CIF resolution
·
video
inputs
·
video
outputs
·
alarm
inputs
·
alarm
outputs
·
audio
inputs
·
audio
output
·
relay
outputs
·
UART-enabled
RS-232/422/485 forPTZ/POS/ATM
·
watchdog circuit
·
button
input
·
LED
outputs
·
Temperature Sensor
·
EEPROM
for configuration & security settings
Hardware
Compression & Decompression
On-board hardware
video compression ensures full frame-rate recording at all times,
regardless of host processor load, number of remote viewing
connections, or any other system-level activity. On-board hardware
video decompression enables powerful search functionality, such as
the ability to “scrub” rapidly forward and backward through 16
channels of video simultaneously on a frame-accurate basis.
True 480 IPS
Recording
Exacq eDVR enables
true 480 ips recording* on 16 channels of video while simultaneously
displaying 16 live channels of 480 ips video. On-board hardware
compression ensures recording and display are never compromised
during heavy system activity.
32-Input 960 IPS
System in a 2U-Height Chassis
The high level of
integration on the Exacq eDVR enables a fully-capable 32-channel DVR
implementation with two eDVR 4000 boards in a small enclosure, such
as a 2U-height rack-mount chassis or a small embedded industrial
chassis, significantly lowering cost, heat, footprint and power
requirements for larger, enterprise-level systems.
Hardware Video Masking
User-definable
region in each video channel can be masked in hardware, preventing
that area from being compressed, recorded, or passed-through;
necessary in banking, correctional or other applications where
privacy regions are a requirement. |
|
Does Not Require Expensive, High-Speed Host Processor
|
|
|
With the
on-board video compression and decompression handling the
bulk of the processing requirements, a true 480 ips
16-channel DVR system can be built on inexpensive, low-power
platforms, such as Intel Celeron-powered motherboards or
standard embedded processors. At full rate recording
of 16 channels, processor load on a Celeron 700 is under 7%. |
 |
Low Power Consumption
Exacq eDVR boards
run cool with low power requirements. Multiple eDVR boards can
reside in a standard industrial rackmount or desktop chassis with no
requirements for additional power or cooling.
Digital Crosspoint Switch
Independent
multi-picture D1 streams consisting of any combination of inputs are
delivered to each compression engine, each encoder, and each VGA
display creating a true crosspoint switch.
OSD/Graphics Capability
Robust OSD and
graphics on video outputs include definable fonts, colors, points,
lines, borders
Cross-Platform Development Environment
A complete Software
Development Kit is included utilizing cross-platform tools with
extensive sample code in WxWidgets, VB.net and C#. Fully supported
under Microsoft Windows XP, Windows XP Embedded and Linux.
Video Analysis Optimized
Real-time video acquisition into host RAM with
callback notification is ideal for video analysis software such as
object tracking, advanced motion detection and behavior analysis.
General Purpose Serial API for Third-Party Integration
General-purpose
Serial API is included for third-party integration of PTZ, POS, ATM,
Access Control, and any serial transactional events.
|
